Your RV’s exterior walls are its first line of defense against the elements, but they can face challenges like delamination, cracks, punctures, dents, and water intrusion. These issues can compromise your RV’s structure, appearance, and ability to keep you dry. This comprehensive DIY guide will walk you through identifying and fixing each problem—from subtle delamination to gelcoat blemishes—using proven methods and the right tools. You’ll gain the know-how to:
- Spot delamination, physical damage, and signs of rot
- Execute epoxy injections, panel rebonding, and material-specific fixes
- Revitalize both fiberglass and aluminum surfaces
- Ward off future problems with smart sealant choices and regular upkeep
- Determine when it’s time to call in the pros
Whether you’re breathing new life into a fiberglass laminate shell or a riveted aluminum exterior, this guide provides clear, step-by-step instructions, helpful comparison charts, and essential tool lists to ensure your exterior wall repairs stand the test of time.
What Are the Usual Suspects When It Comes to RV Exterior Wall Damage?
RV exterior walls are complex structures, featuring layers of materials and finishes that endure constant exposure to road grit, harsh UV rays, and moisture. Damage can appear as delamination, where layers separate, punctures and cracks from impacts, or water-logged areas that lead to rot beneath the surface. Catching these issues early is key to maintaining your RV’s structural integrity and its value.
What Causes RV Wall Delamination and How Do You Spot It?
Delamination happens when the bonded layers of your RV wall—the gelcoat, fiberglass, luan backing, or composite materials—begin to separate. This is often triggered by moisture seeping in, adhesive breakdown, extreme temperature shifts, or UV damage. For instance, a tiny leak at a seam can allow moisture to creep in, creating unsightly bubbles under the fiberglass. Here’s what to look for:
- Soft, spongy spots along seams, indicating water intrusion
- Bubbles or rippling in the outer gelcoat layers
- Visible gaps or lifting edges where wall layers are separating
- Paint or decals peeling away near the affected areas
Delamination can range from minor surface imperfections to complete panel separation requiring extensive repair. Addressing it early prevents hidden rot and restores your wall’s strength.

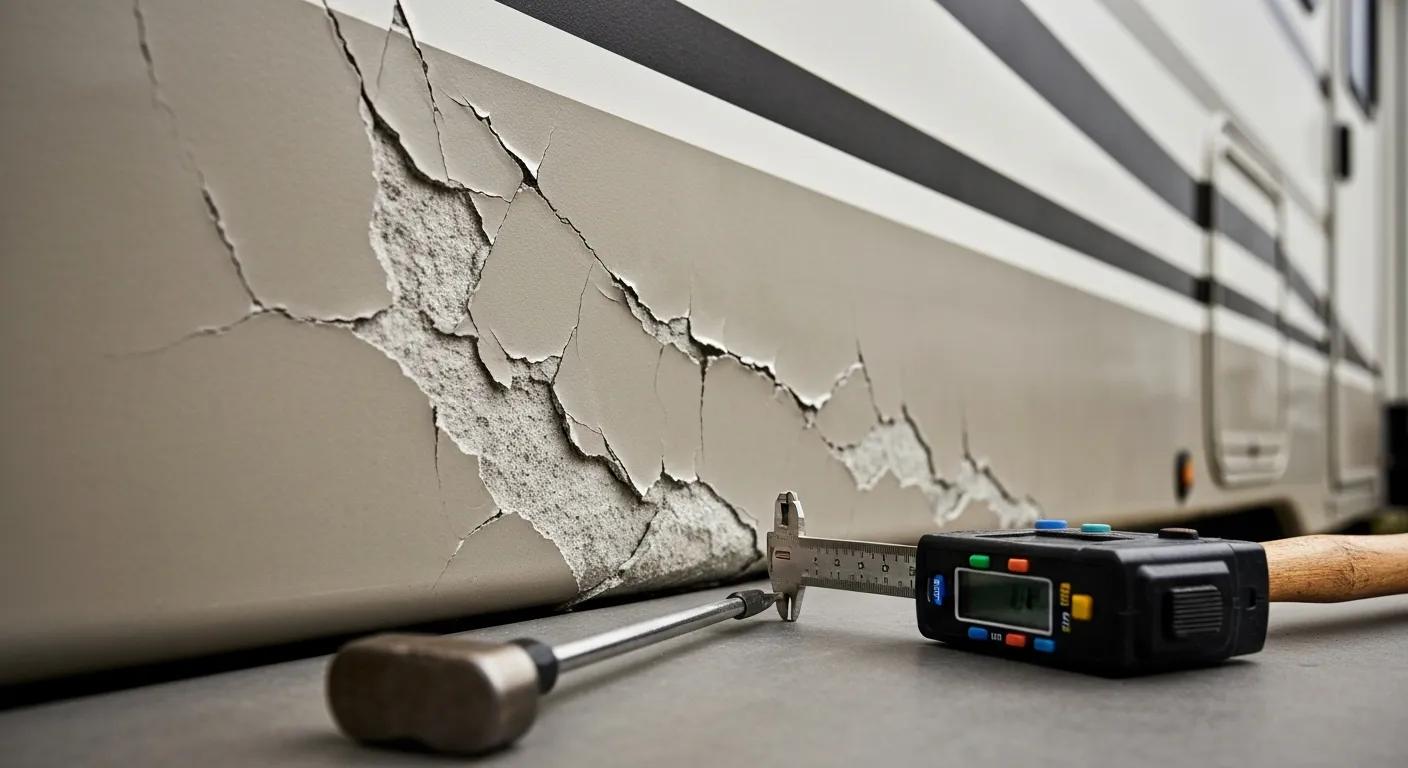

How to Find Cracks, Holes, and Other Physical Damage on RV Walls?
Physical damage to an RV wall typically results from road debris, hail strikes, or accidental bumps, leaving behind cracks, holes, and dents. A seemingly minor gelcoat crack can easily spread under stress, while a puncture through aluminum or composite siding exposes the vulnerable inner layers. Keep an eye out for these signs:
- Fine, hairline fractures in the gelcoat or paint finish
- Small pinholes or tears that go through the fiberglass laminate
- Dented or visibly warped aluminum panels
- Exposed insulation or framing where the siding has been breached
Before you start repairs, meticulously document the size and location of every flaw. This will help you choose the right patching materials and reinforcements.
How to Identify Water Damage and Rotting Spots in RV Walls?
Water damage occurs when leaks bypass your RV’s seals and penetrate the interior paneling, leading to rot in wood substrates like luan or plywood. Soft spots and a musty odor emanating from behind your interior walls are clear indicators of structural decay. Here’s how to investigate:
- Gently press along the exterior wall; feel for any spongy or collapsing areas.
- If accessible, remove an interior panel and use a moisture meter on the luan or Azdel board.
- Look for discolored insulation or mold stains on the interior paneling.
- Trace potential leak sources around windows, vents, and roof seams.
Tackling water damage swiftly is crucial to prevent frame corrosion and fiberglass blistering.
What Materials Are RV Exterior Walls Typically Made Of?
RV exterior walls are constructed from a variety of materials, chosen for their balance of weight, strength, and resistance to the elements. Understanding these materials is key to selecting the right repair approach.
| Material | Key Characteristic | Typical Application |
|---|---|---|
| Fiberglass | Durable laminate with a protective gelcoat finish | Common on Class A motorhomes and as full fiberglass panels |
| Aluminum | Lightweight and resistant to dents | Often found on travel trailers and as corrugated siding |
| Composite Board | A core of foam sandwiched between fiberglass skins | Used in higher-end fifth wheels for its strength and insulation |
| Luan (Plywood) | Thin wood paneling is used as a backing | Serves as the substrate for interior walls |
| Filon™ | A textured fiberglass sheet material | Frequently used as an overlay on entry-level trailers |
How to Effectively Repair Delamination on Your RV Walls
What’s the Process for Epoxy Injection in Closed Wall Delamination?
Epoxy injection is a clever technique that uses a low-viscosity resin to fill voids and re-bond separated layers without removing the exterior panels. Follow these injection steps:
- Drill small 3/16″ holes precisely at the delaminated spots, spacing them about 2–4 inches apart.
- Mix a specialized epoxy resin designed to be safe for styrofoam.
- Load the resin into plastic syringes and inject it into each drilled hole until it’s full.
- Apply pressure to the surface using clamps or weights to compress the layers together.
- Allow the epoxy to cure fully, typically 24–48 hours, then sand the area smooth and reapply gelcoat.
This closed-wall epoxy injection method effectively restores the laminated strength of your RV walls and prevents moisture from getting trapped.
Why RV, Motorhome, & Camper Walls Delaminate, & the #1 DIY Fix. Epoxy Injection Solves the Problem!
RV wall delamination often stems from moisture intrusion that weakens the adhesive holding plywood layers together, resulting in visible bubbles and bulges. This guide champions epoxy injection, using specialized resins like Composet SLV™, as a highly effective DIY solution to re-bond delaminated sections without the need for a full wall replacement. This expert insight directly supports our explanation of what causes RV wall delamination and provides a solid foundation for the detailed epoxy injection steps outlined for closed-wall repairs.
When and How Should You Tackle Advanced Open Wall Delamination Repair?
Open-wall repair becomes necessary when delamination affects large areas or when moisture has caused significant rot in the backing panels. Here’s the panel rebonding procedure:
- Carefully remove the damaged outer skin and any rotten luan substrate.
- Cut a new piece of luan or Azdel board to precisely match the dimensions of the removed section.
- Apply a strong contact cement or structural paste (like CompoBond) to both the RV wall and the new substrate.
- Position the new substrate, apply even clamping pressure, and let the adhesive set completely.
- Laminate a new fiberglass overlay using resin and cloth, then finish with a smooth gelcoat application.
Open-wall repair is the go-to solution for restoring full structural integrity when simpler methods won’t suffice.
What Tools and Materials Are Essential for RV Delamination Repair?
Successfully tackling delamination hinges on having the right tools and high-quality, properly formulated resins.
- Electric drill equipped with a mixing paddle
- A selection of drill bits, ranging from 3/16″ to 1/4″
- Styrofoam-safe epoxy resin and its corresponding hardener
- Plastic syringes (10–20 mL capacity) with blunt tips for precise application
- Steel or wood strips for effective clamping pressure
- Painter’s tape, mixing containers, and stir sticks
High-strength epoxy resins are vital for structural bonding, while fillers and gelcoat are used to achieve a smooth, seamless finish.
How Can You Prevent Future Delamination on Your RV Walls?
Consistent maintenance and timely replacement of aging sealants are your best defenses against moisture intrusion, the primary culprit behind delamination.Key prevention strategies:
- Conduct thorough inspections of all seams, windows, and roof seals at least twice a year.
- Re-secure or replace any worn-out rubber gaskets or butyl tape.
- Wash your RV’s exterior walls and apply a UV-resistant wax annually.
- Utilize self-leveling urethane sealants on all roof seams for maximum protection.
Proactive care keeps your wall layers securely bonded and saves you from costly repairs down the line.
How to Repair Fiberglass RV Walls: Tackling Cracks, Holes, and Gelcoat Damage

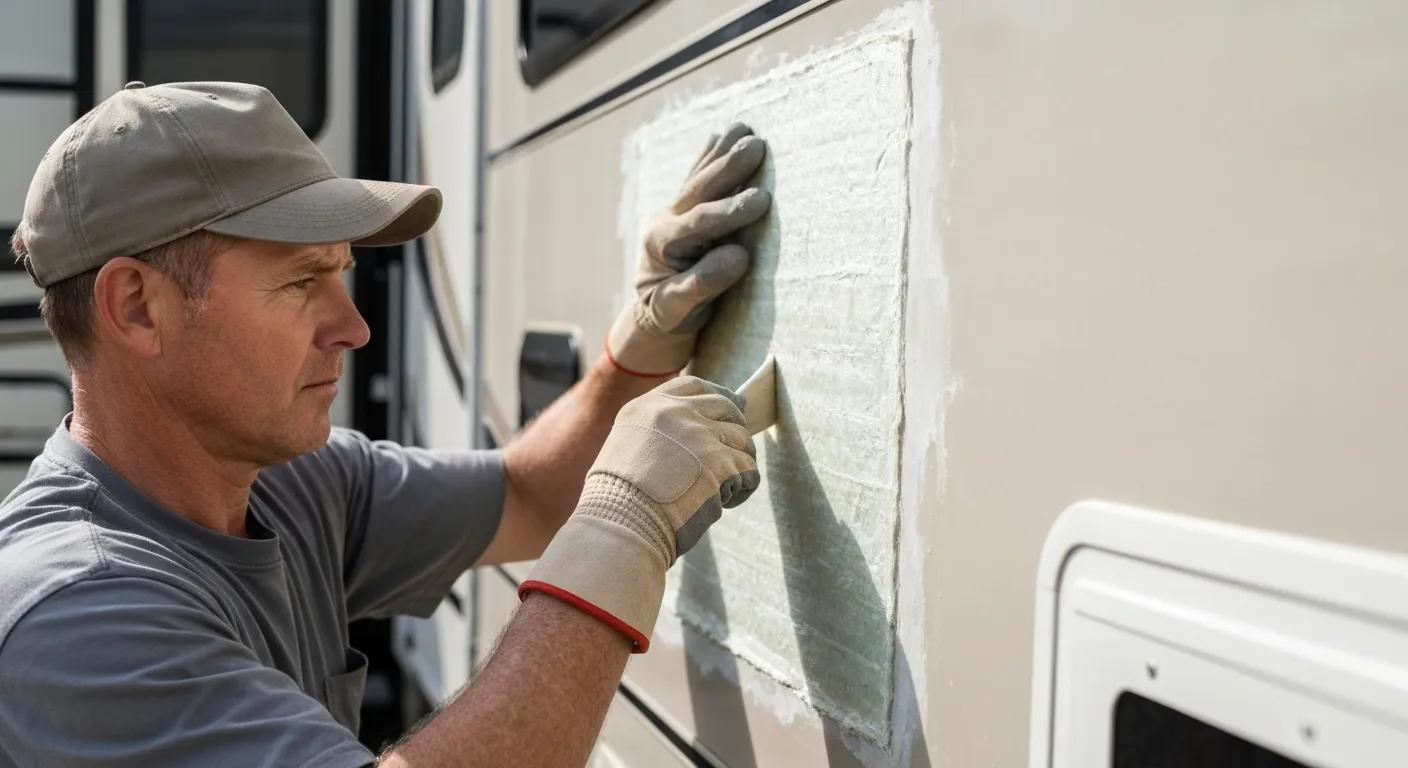

What Are the Top Techniques for Fiberglass Patching on RV Walls?
Effective fiberglass patching relies on using matching cloth, the right resin, and appropriate fairing compounds for a seamless finish.
- Thoroughly clean the damaged area and sand a 2-inch perimeter around it to ensure good adhesion.
- Cut layers of fiberglass cloth slightly larger than the damaged area.
- Mix your chosen polyester or epoxy resin with its specific hardener according to the manufacturer’s directions.
- Saturate the fiberglass cloth layers with resin, apply them in overlapping layers to the damage, and allow them to cure completely.
- Sand the patched area until it’s flush with the surrounding surface, apply fairing compound to smooth any imperfections, and blend the transitions.
Properly layered patches restore the panel’s strength and prevent future cracking.

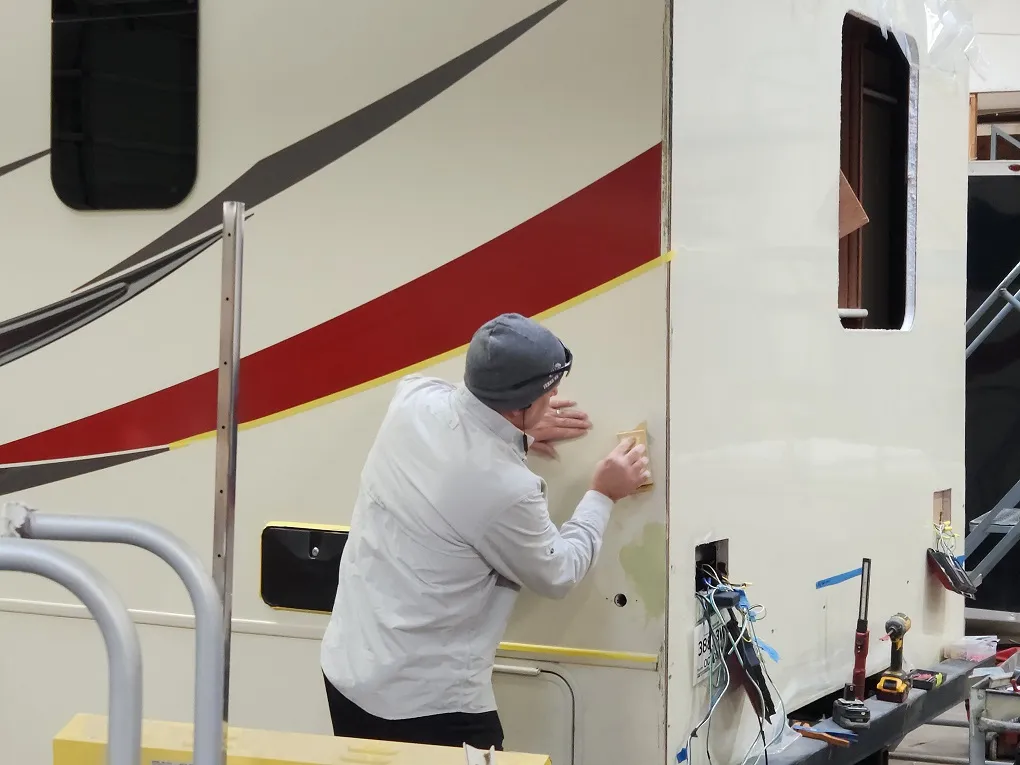

How to Repair and Restore Gelcoat on Fiberglass RV Walls?
Gelcoat repair is essential for sealing surface damage and matching your RV’s original finish. Follow this gelcoat restoration process:
- Sand the damaged gelcoat down to solid edges and clean the area thoroughly with acetone or what we like to use Acrysol.
- Mix the gelcoat with a UV-stable catalyst, following the manufacturer’s precise instructions.
- Apply the gelcoat in thin, even coats, allowing each layer to partially cure before applying the next.
- Once the final layer is cured, wet-sand it using 600–1200 grit sandpaper for a perfectly smooth blend.
- Finish by polishing with a marine-grade compound to provide UV protection and a brilliant shine.
A restored gelcoat finish effectively repels moisture and keeps your RV looking sharp.
Which Adhesives and Resins Are Best for Fiberglass Repairs?
Different resin systems offer unique advantages in terms of strength, flexibility, and how quickly they cure.
| Resin Type | Key Property | Best Use Case |
|---|---|---|
| Polyester | Quick curing, cost-effective | Ideal for small, non-structural patches |
| Epoxy | Superior bond strength and durability | Excellent for structural rebonding and areas prone to moisture |
| Vinyl Ester | High resistance to corrosion and chemicals | Well-suited for marine environments or areas exposed to harsh chemicals |
For RV fiberglass structural repairs, epoxy resin stands out due to its exceptional adhesion and flexibility, making it the top choice.
How to Repair Aluminum RV Walls: Addressing Dents, Punctures, and Panel Replacement
How to Match and Replace Aluminum RV Siding Panels?
Replacing aluminum siding panels requires meticulous measurement and a perfect finish match to ensure a seamless, uniform appearance. Follow these replacement steps:
- Carefully remove the rivets or screws holding the damaged panel in place.
- Source a new panel from an RV parts supplier that matches the original gauge and finish.
- Align the new panel precisely and drill pilot holes where the original fasteners were located.
- Secure the new panel using low-profile aluminum rivets and seal all edges with an appropriate sealant.
Accurate panel matching is crucial for maintaining your RV’s factory-fresh look.
What Are the Best Practices for Riveting and Sealing Aluminum Panels?
Proper riveting is key to preventing leaks and annoying rattles that can develop over time. Adhere to these best practices:
- Use a step drill bit for pre-drilling to create clean holes without burrs on thin aluminum.
- Opt for stainless steel or aluminum rivets specifically rated for exterior use.
- Apply a continuous bead of urethane sealant along the panel edges before fastening.
- Tighten rivets until they are snug, ensuring a secure grip without over-compressing the material.
Well-sealed and properly riveted panels will keep water out and eliminate rattles.
Which Sealants Are Recommended for Aluminum RV Wall Repairs?
Choosing the right sealant is vital for creating a durable, waterproof barrier that protects your RV. Consider these recommended sealant types:
- Self-leveling urethane is perfect for horizontal seams and roof joints.
- Butyl rubber tape is excellent for creating a reliable seal around windows and trim.
- Premium silicone offers flexibility and is suitable for non-painted areas.
- Polysulfide sealant is a robust option for joints that experience significant movement.
Applying the correct sealant diligently protects aluminum edges from moisture and prevents corrosion.
How to Identify and Repair Water-Damaged RV Walls
How to Inspect and Replace Rotten Luan and Framing in RV Walls?
Rotten luan and compromised studs can significantly weaken your RV’s walls and compromise insulation. Here’s the replacement procedure:
- Carefully remove the interior wall paneling to expose the affected luan and framing.
- Cut out all decayed sections and thoroughly inspect the underlying studs for damage.
- Treat any nearby framing with a quality wood preservative.
- Cut new luan or Azdel board to precisely match the dimensions of the removed sections.
- Re-fasten the siding panels and meticulously reseal all exterior seams.
Restoring the substrate prevents future rot and ensures your wall panels remain rigid and stable.
What Are Effective Methods to Prevent Water Leaks and Damage?
Regular sealing and diligent inspections are your best bet for keeping water out. Implement these preventive measures:
- Re-caulk around doors, windows, and vent flanges at least once a year.
- Keep roof drains clear and consider applying protective roof coatings.
- Use seam seal tape along lap joints for an extra layer of protection.
- Inspect rubber gaskets regularly and replace any that show signs of cracking.
Consistent sealing maintenance ensures water stays outside where it belongs.
How to Avoid Buying an RV with Water Damage
Leaks from deteriorated seals around roof fixtures, windows, and doors most commonly cause water damage in RVs. Key warning signs include discoloration, soft spots, warped panels, musty odors, and delamination. Regular inspections and diligent sealant upkeep are the most critical to preventing these costly issues. This expert advice strongly reinforces our sections on identifying water damage and rot in RV walls, and it underscores the importance of the preventive maintenance strategies we’ve outlined to keep water damage at bay.
How to Dry and Treat Moisture-Damaged RV Wall Areas?
Thorough drying and proper disinfection are essential to halt mold growth and prevent further decay. Follow these drying and treatment steps:
- Remove any wet insulation and ensure good airflow using fans or a heat source.
- Apply a mold-killing solution to all affected wood and substrate materials.
- Utilize desiccant packs or a dehumidifier within enclosed compartments to remove residual moisture.
- Confirm that the area is completely dry with a moisture meter before reinstalling any panels.
Completing the drying and treatment process effectively restores a healthy environment within your RV walls.
What Tools and Materials Are Essential for DIY RV Exterior Wall Repairs?
Which RV Wall Repair Kits Are Best for Different Damage Types?
Repair kits are convenient bundles of matched fillers, resins, and finishing compounds designed for quick and effective fixes.
| Kit Name | Repair Type | Key Feature |
|---|---|---|
| Fiberglass Patch Kit | Holes & Cracks | Includes pre-cut fiberglass cloth and resin |
| Gelcoat Repair Kit | Surface Scratches & Blemishes | Features a UV-stable gelcoat formula |
| Panel Bond Kit | Delamination Injection | Comes with high-flow epoxy cartridges for easy application |
| Aluminum Patch Kit | Small Dents & Punctures | Contains self-adhesive aluminum patches for quick repairs |
How to Choose the Right Epoxy, Sealants, and Adhesives?
Selecting the correct adhesive depends on the materials you’re working with, the expected movement of the panels, and the environmental conditions. Consider these key selection criteria:
- Substrate Compatibility: Ensure the product is suitable for fiberglass, aluminum, or plywood.
- Cure Time: Match the cure time to your project schedule and working conditions.
- Environmental Resistance: Look for ratings for UV exposure and moisture resistance.
- Flexibility vs. Hardness: Choose based on whether the repair needs to accommodate panel movement or remain rigid.
Matching product specifications precisely to your repair needs guarantees long-lasting bonds and seals.
What Tools Are Needed for Cutting, Patching, and Sealing RV Walls?
A well-equipped basic toolkit will enable DIYers to perform precise and efficient repairs.Essential tools include:
- Utility knife and oscillating multi-tool for cutting various substrates
- Dual-cartridge caulk gun with appropriate mixing nozzles
- Sanding blocks (80–400 grit) and an orbital sander for smooth finishes
- Putty knives and plastic spreaders for applying fairing compounds
- A heat gun can speed up curing in cooler temperatures
Choosing the right tools not only improves the quality of your work but also significantly reduces repair time.
When Should You Consider Professional Repair for Your RV’s Exterior Walls?
What Kind of Damage Demands Expert RV Wall Repair Services?
Severe damage that typically requires professional attention includes:
- Extensive delamination affecting an entire sidewall
- Rotting in structural framing that impacts load-bearing components
- Large aluminum panel replacements that go beyond simple patching
- Complex repairs involving composite materials or proprietary finishes like Filon™
Professional technicians have access to specialized equipment and can source factory-matched replacement panels.
How Do DIY Repair Costs Compare to Professional Services?
Deciding whether to invest your time or your money involves different cost considerations.
| Repair Scenario | Estimated DIY Cost | Typical Professional Cost |
|---|---|---|
| Minor fiberglass patch | $20–$50 | $150–$300 |
| Closed-wall delamination injection | $100–$200 | $400–$600 |
| Open-wall panel rebonding | $200–$400 | $800–$1,200 |
How to Find Reliable RV Repair Professionals and Services?
Selecting a qualified technician is key to ensuring quality workmanship and maintaining any applicable warranties. Use these evaluation criteria:
- Verify RVIA or ASE certifications for technicians.
- Read customer reviews and examine before-and-after portfolios.
- Confirm that the service provider carries adequate insurance for both mobile and shop repairs.
- Request and compare written estimates that clearly detail all materials and labor involved.
Partnering with a vetted professional ensures the long-term integrity of your RV’s maintenance. Addressing exterior RV wall issues promptly is essential for maintaining structural soundness, preventing costly rot, and preserving your RV’s resale value. With the techniques outlined in this guide for delamination, fiberglass and aluminum panel restoration, and water-damage recovery, you’ll be well-equipped to handle common problems yourself. Regular inspections, diligent sealant reapplication, and the use of high-quality materials are your best defense against the stresses of the road and weather. Whether you tackle repairs yourself or bring in a certified technician for major work, proactive maintenance is the ultimate secret to a durable and attractive RV exterior.
